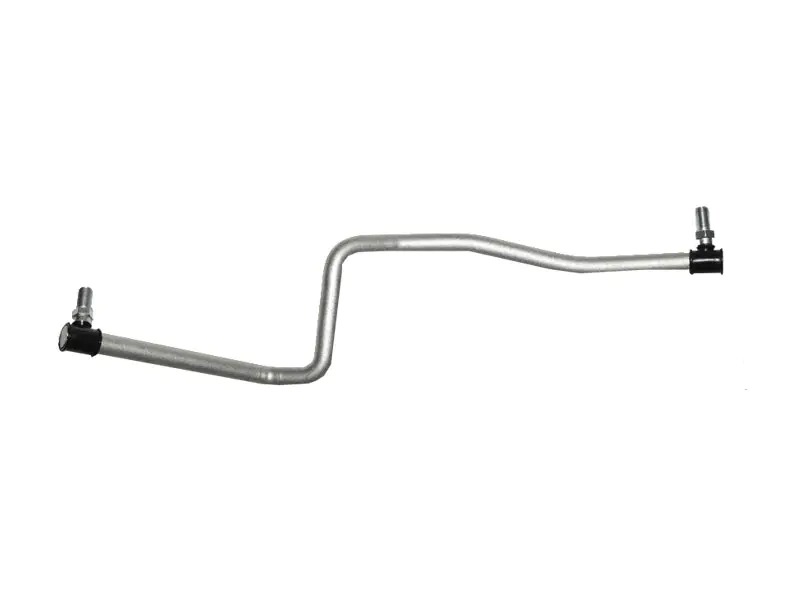

In the field of construction machinery, Steering Drag Link is a key component of the vehicle steering system and undertakes the important task of transmitting steering force and ensuring equipment handling stability. Since construction machinery is often operated under extreme working conditions such as mines and construction sites, Steering Drag Link needs to withstand frequent vibrations, severe impacts and complex alternating loads. Therefore, how to improve its impact resistance and ensure reliable operation in extreme environments has become an important direction for the industry's technological research. In recent years, a series of innovative measures have been driving a significant improvement in the performance of the Steering Drag Link, the engineering machinery, from material innovation to structural optimization, and then to strict testing standards.

Material innovation: laying the foundation for impact resistance

The choice of materials directly determines the impact resistance of Steering Drag Link. Although traditional medium-carbon steel or low-alloy steel has a certain strength, its toughness and fatigue resistance are difficult to meet the needs under extreme operating conditions, and it is prone to fracture or deformation. To this end, new high-performance materials are gradually emerging.

High-strength alloy steel has become one of the mainstream choices. By adding alloy elements such as chromium, molybdenum, vanadium, etc., the strength, toughness and fatigue resistance of the steel are greatly improved. These alloy elements can refine the grain structure and enhance the bonding force inside the material, so that they are less likely to cause cracks or damage when impacted. For example, while maintaining high strength, molybdenum-containing alloy steel significantly improves the impact toughness of the material, effectively absorbs external impact force and reduces the risk of component damage.

In addition, lightweight composite materials have also begun to be used in some high-end engineering machinery. Carbon fiber reinforced composites (CFRP) and glass fiber reinforced composites (GFRP) show great potential with their high specific strength and excellent energy absorption capabilities. When this type of material is impacted, the synergistic action of fibers and resin matrix can disperse stress, avoid local stress concentration, thereby effectively improving impact resistance. At the same time, its lightweight properties can also reduce the vehicle's own weight and indirectly improve the load conditions of the steering system.

Structural optimization: The key to enhancing impact resistance

In addition to material improvements, optimization of structural design is crucial to improving the impact resistance of Steering Drag Link. Through computer-aided engineering (CAE) technology, engineers simulated and analyzed the stress conditions of the steering cross-lever under different working conditions, thereby improving the structure in a targeted manner.

In terms of shape design, variable cross-sectional structure is used instead of the traditional uniform cross-sectional design. Increase the cross-sectional size in areas with greater stress to improve load-bearing capacity; and appropriately reduce the size in areas with less stress to reduce weight. This design not only ensures overall strength but also avoids waste of materials. In addition, optimizing the structural form of the connection parts, such as using reinforcement ribs, transitional fillets, etc., can effectively reduce stress concentration. Reinforcement ribs can enhance the rigidity of the component and disperse the impact force; transitional rounded corners can avoid cracks caused by stress concentration at sharp corners, significantly improving the impact resistance of the component.

At the same time, the modular design concept was also introduced into the development of Steering Drag Link. By splitting the cross-tie rod into multiple functional modules, each module can select the appropriate material and structure according to the actual stress requirements, which not only facilitates maintenance and replacement, but also personalized configuration for different working conditions, further improving impact resistance and overall reliability.

Extreme working conditions test: strict standards for verifying performance

To ensure the reliability of Steering Drag Link in practical applications, rigorous extreme operating conditions testing is indispensable. The industry conducts comprehensive performance verification of steering cross-tie rods by simulating various harsh environments and complex working conditions that construction machinery may face.

In dynamic impact test, the hydraulic impact test bench or hammer impact device is used to simulate the impact force when the vehicle encounters obstacles, severe bumps and other emergencies during driving. By adjusting the impact energy, velocity and angle, the Steering Drag Link’s degree of deformation, crack propagation and whether there is a fracture under different impact conditions, and its impact toughness and failure mode are evaluated.

Environmental adaptability test simulates extreme environments such as high temperature, low temperature, high humidity, salt spray, etc. In high temperature environment, the thermal stability and mechanical properties of the material are tested; in low temperature environment, the cold brittleness and impact resistance of the material are tested; in salt spray environment, the corrosion resistance of the components and their impact on mechanical properties are evaluated. These tests fully reflect the reliability of Steering Drag Link in different environments and provide data support for product improvements.

In addition, the fatigue life test simulates the alternating loads that the steering cross-lever has suffered during long-term use through cyclic loading, and determines its fatigue limit and service life. Set the loading frequency, amplitude and cycle times in combination with the actual working conditions to ensure that the test results are close to the real use scenarios, thereby providing guarantees for the durability and safety of the product.

Future Outlook: Continuous Innovation-driven Performance Improvement

As the construction machinery industry develops towards intelligence and greening, the performance requirements for Steering Drag Link will continue to increase. In the future, the advancement of materials science will bring more high-performance and lightweight new materials; the application of artificial intelligence and big data technology will help more accurate structural design and optimization; and the intelligent upgrade of testing technology will also make extreme working conditions more efficient and accurate. Through continuous technological innovation and improvement of standards, the impact resistance and reliability of Steering Drag Link is expected to achieve new breakthroughs, providing solid support for the high-quality development of the industry.
